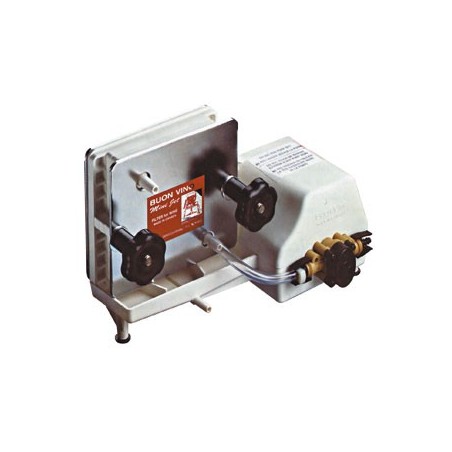

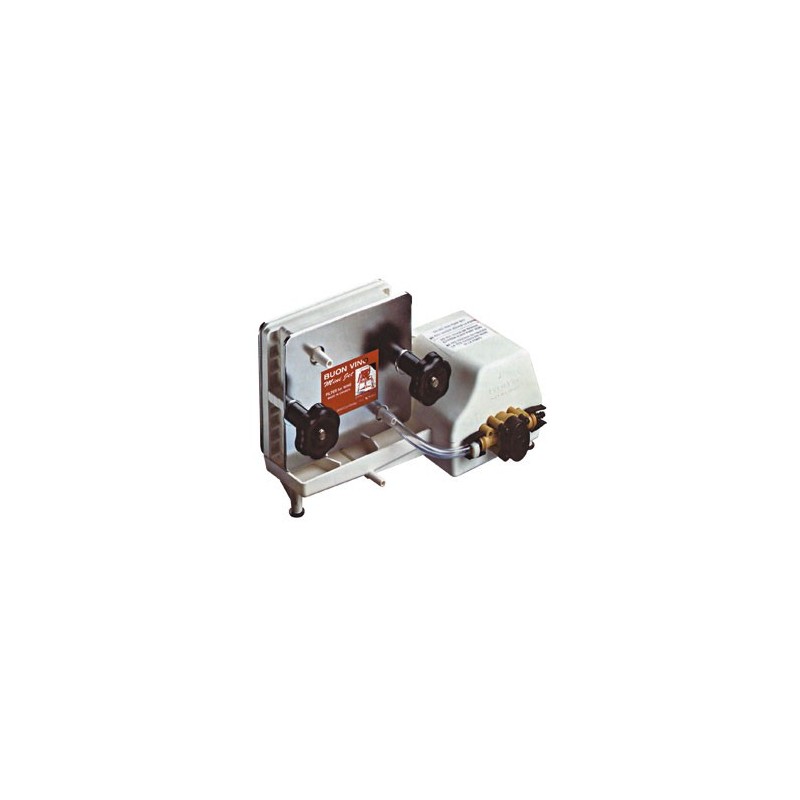

Minijet 10-Plate Filter with Pump

The Minijet plate filter with pump - 3 plates is a compact filtration unit designed for home winemakers and small producers. Equipped with a built-in self-priming membrane pump, it allows you to transfer and filter wine, beer, cider, liqueurs and juices in a single operation, saving both time and product.

It uses 12.5 x 12.5 cm filter pads, which can be easily swapped to choose the desired filtration grade (coarse, polishing or fine). All parts in contact with the liquid are food-grade, ensuring safety and preserving the aroma and flavour of your beverages.

The Minijet 3-plate filter is ideal for those who need a simple, easy-to-use machine with a good working capacity, perfect for bottling small batches in the cellar, lab or homebrewing setup.

Main benefits

• Compact and lightweight: fits easily on a workbench or in small cellars.
• Integrated self-priming pump: no need for gravity feed or manual transfers.
• Interchangeable filter pads: choose the filtration grade according to the product.
• Food-grade materials: suitable for wine, beer and other food liquids.
• Easy maintenance: plates and pads can be quickly removed for cleaning and replacement.

Technical features

• Model: Minijet filter with pump – 3 plates
• Number of filter plates: 3
• Filtering surface: 465 cm²
• Filtering capacity: approx. 80 litres/hour (depending on product and filtration grade)
• Filter pad size: 12.5 x 12.5 cm
• Pump: self-priming membrane pump
• Use: wine, beer, cider, liqueurs, fruit juices and other food liquids
• Dimensions: 30 x 15 x 18 cm (L x W x H)
• Weight: approx. 4 kg

Filter pads (optional): packs of 3 pads available with different filtration grades (coarse, polishing, sterile) to match your specific needs.
