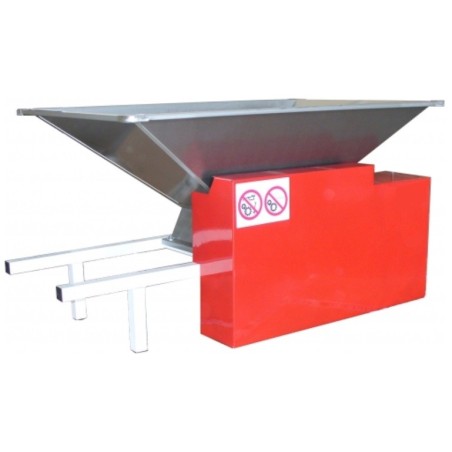

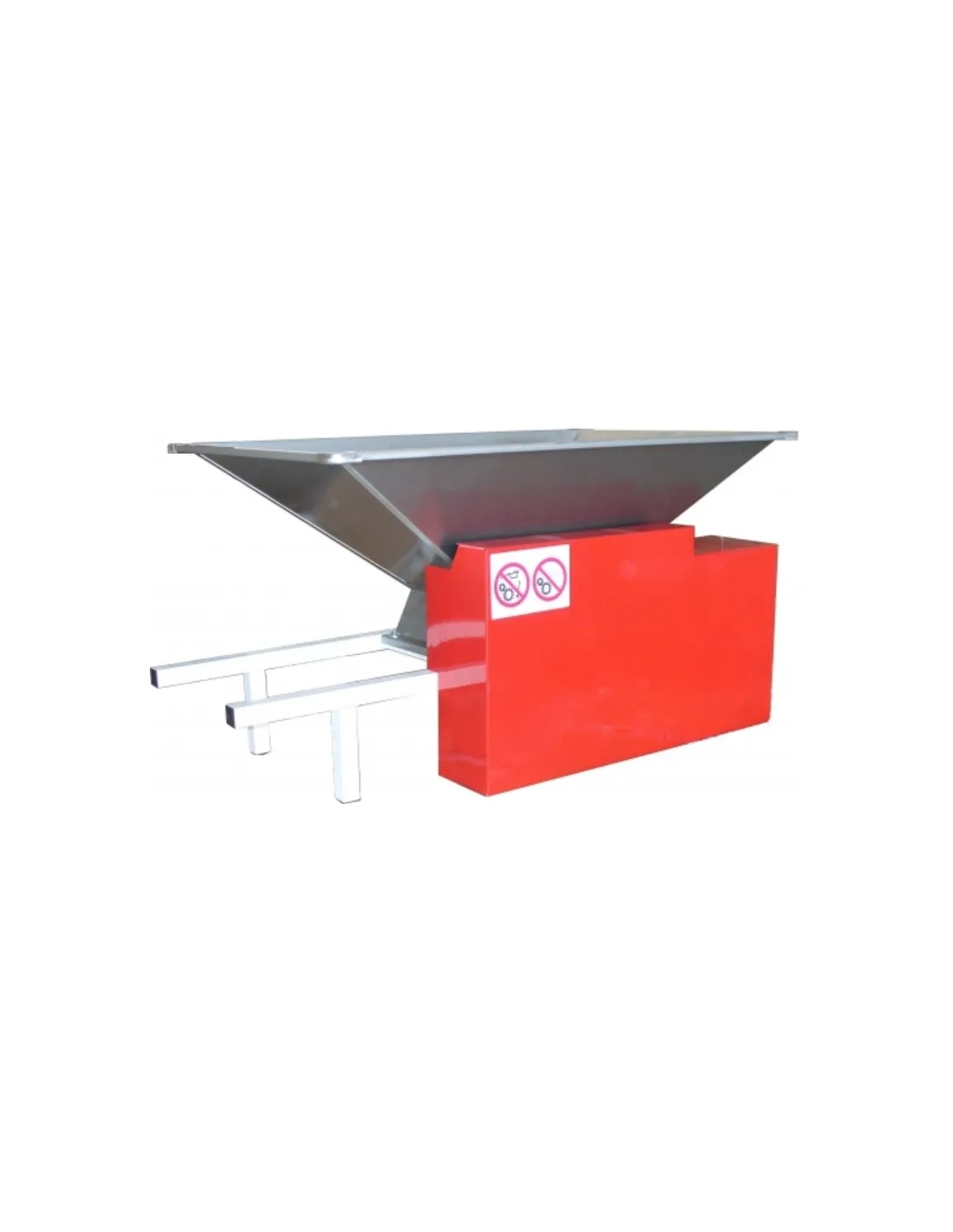

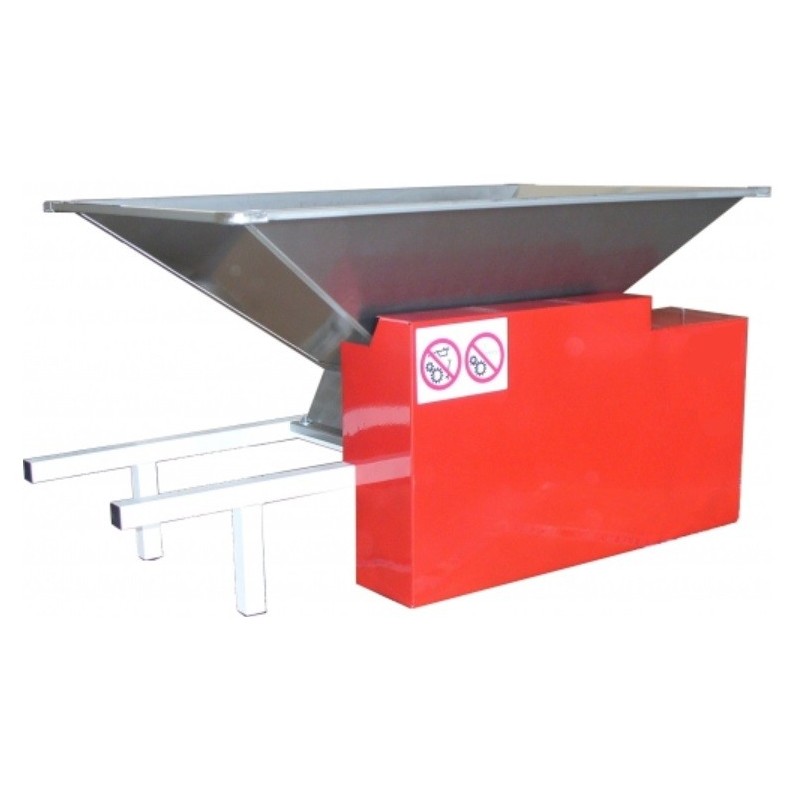

This medium electric grape crusher is fitted with a hopper and agitator in AISI 304 stainless steel. The motor-driven crusher is manufactured entirely in Italy and features a stainless steel hopper measuring 85 x 56 cm. Inside the hopper there is an agitator, also in stainless steel, to help feed the grapes towards the self-adjusting rollers, which use a system that provides good flexibility, essential to protect both the rollers and gears from damage caused by solid parts.
Technical features of the medium electric grape crusher:
- Body in enamelled sheet metal with non-toxic paints;
- Hopper in AISI 304 stainless steel;
- Self-adjusting aluminium rollers, length: 22 cm;
- Stainless steel hopper size: 85 x 56 cm;
- Electric motor: 1 HP (0,75 kW);
- Safety guard in enamelled sheet metal;
- Agitator in AISI 304 stainless steel;
- Hourly output: 5–7 quintals;
- Overall dimensions with motor: 121 x 50 x 57 cm;
- Weight: 33 kg.
- Working capacity
- Over 5 quintals per hour
- Material
- Stainless steel hopper and agitator
- Power supply
- Single phase
03080007
