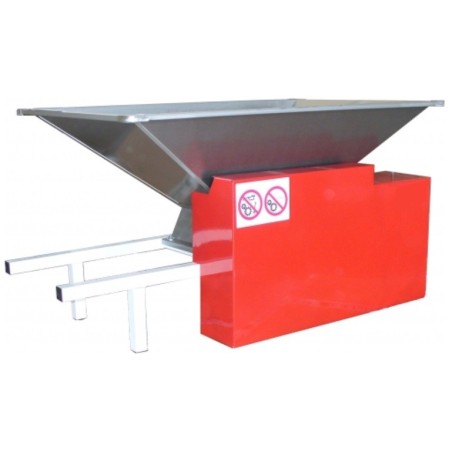

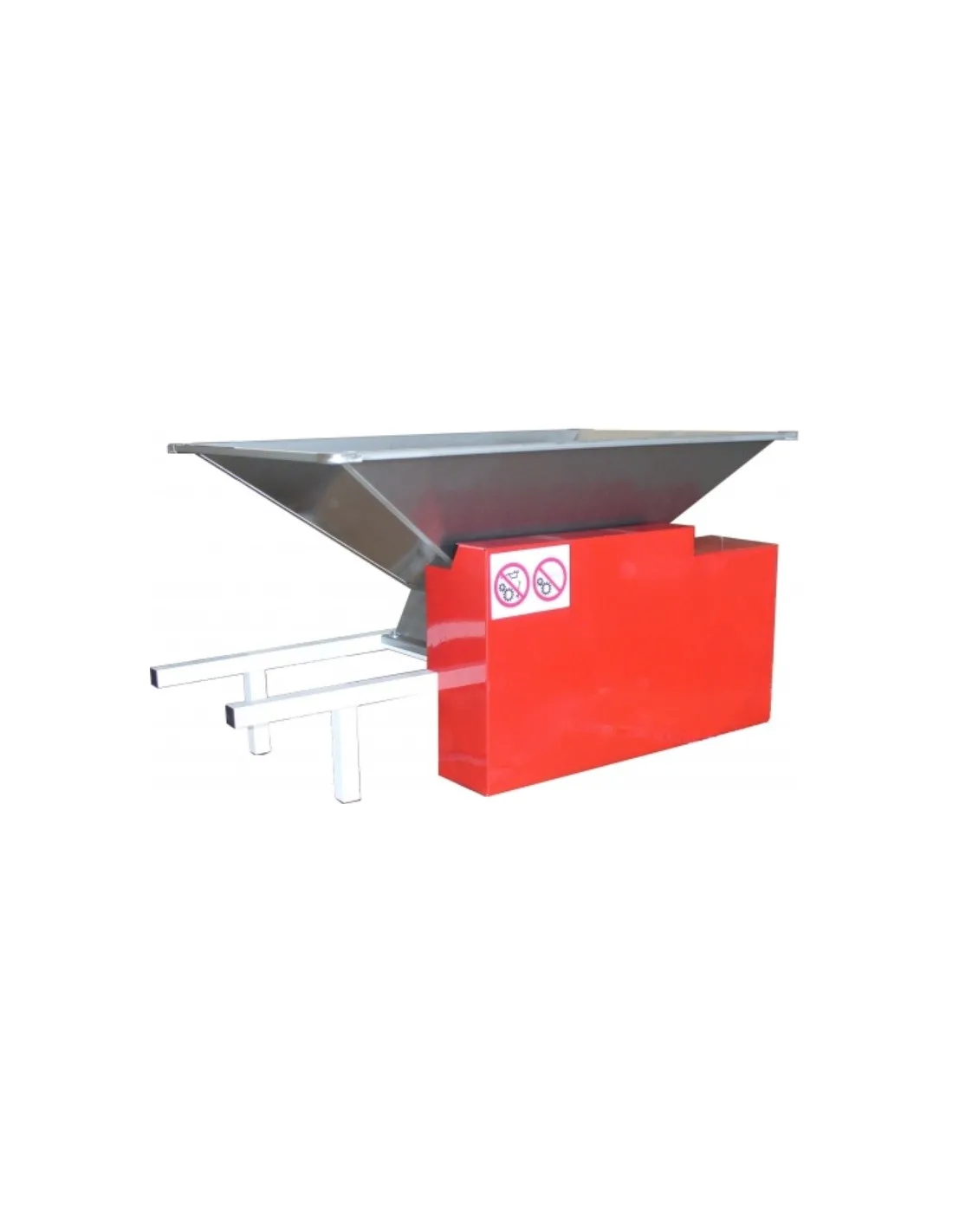

This electric grape crusher is a fully Made in Italy product, built in enamelled sheet metal with non-toxic coating, making it suitable for food use. It is a large motor-driven crusher with a hopper 100 cm long and 63 cm wide, fitted with an internal agitator that helps feed the grapes down towards the self-adjusting rollers. The special support used to mount the rollers allows adjustment of the crushing level and protects both the rollers and gears from damage caused by solid parts passing through.
Technical features of the large electric grape crusher:
- Crusher made of enamelled sheet metal with non-toxic paints;
- Hopper in AISI 304 stainless steel;
- Self-adjusting aluminium rollers, length: 28 cm;
- Stainless steel hopper size: 100 x 63 cm;
- Electric motor: 1 HP (0,75 kW);
- Safety guard in enamelled sheet metal;
- Stainless steel agitator;
- Hourly output: 6–8 quintals;
- Overall dimensions with motor: 121 x 55 x 62 cm;
- Weight: 40 kg.
- Working capacity
- Over 5 quintals per hour
- Material
- Stainless steel hopper and agitator
- Power supply
- Single phase
