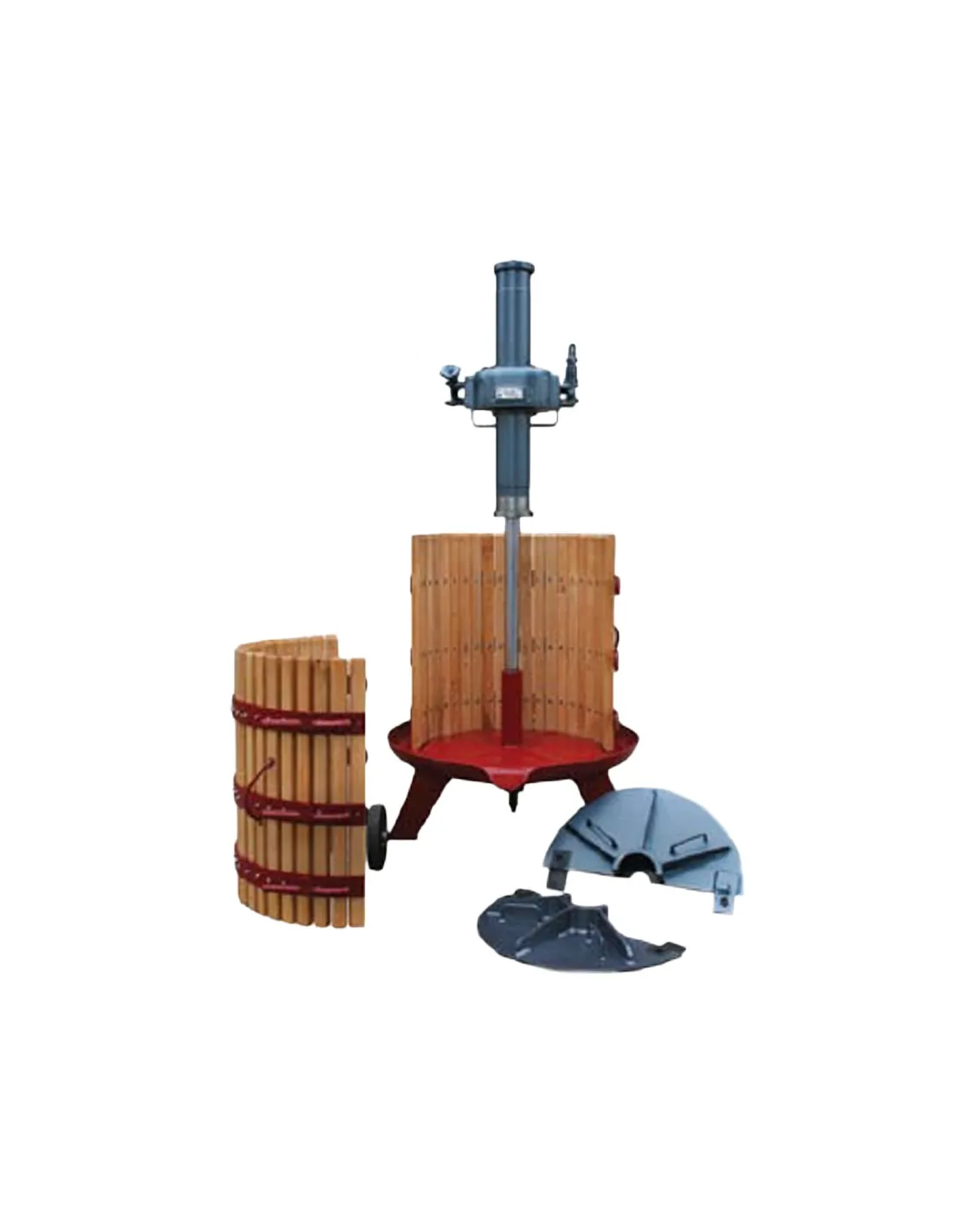

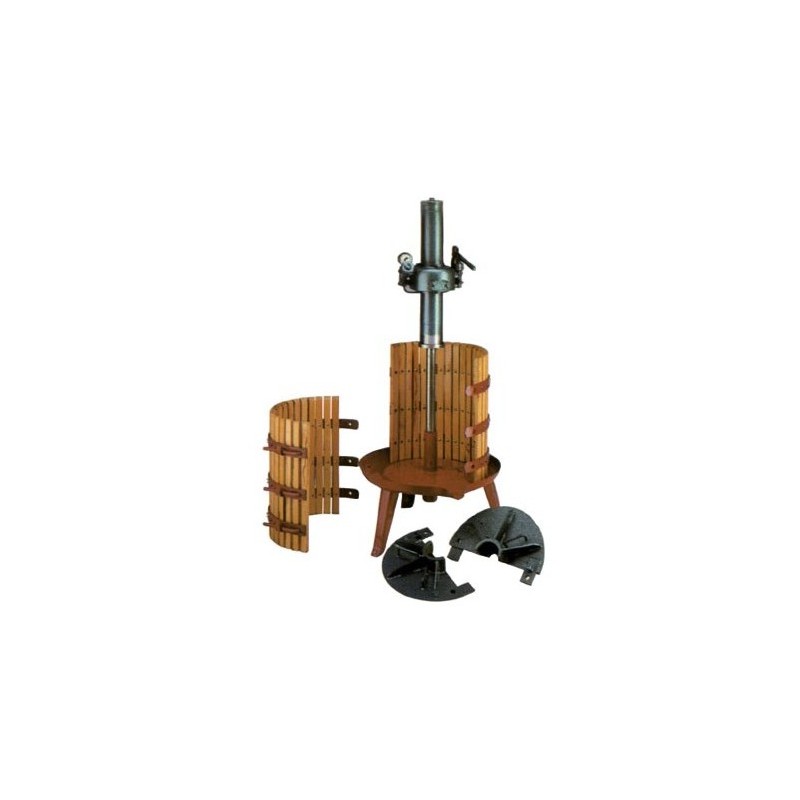

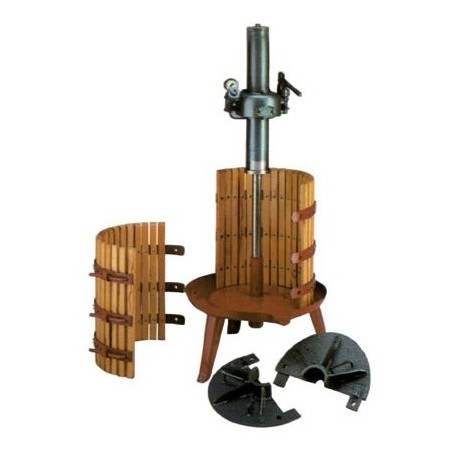

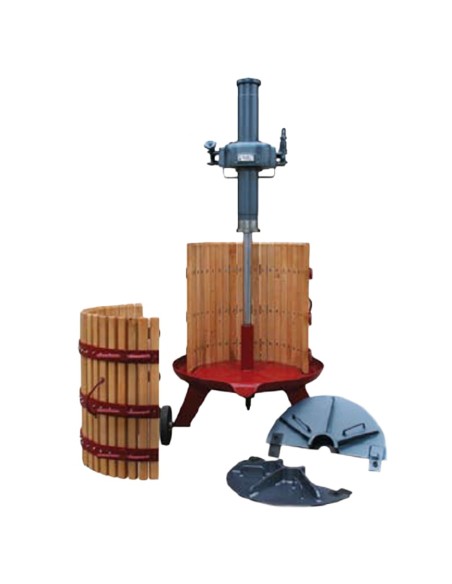

Hydropneumatic Grape press

The hydropneumatic wine press is a type of press ideal for processing large quantities of grapes. It is an essential tool for the pressing of grapes, which is carried out by the pressure applied by the hydropneumatic (hydraulic and pneumatic) head. This operates in two stages: the first consists of the hydraulic downward stroke and the second of the pneumatic return stroke.

The hydropneumatic press is particularly suitable for medium and large wineries that produce significant quantities of wine.

Available versions:

• 60 manual;
• 70 manual;
• 80 manual;
• 60 electric;
• 70 electric;
• 80 electric.

Optional:

• Three-wheel trolley;
• Stainless steel cage.

Technical features common to all versions:

• Hydropneumatic movement, with hydraulic downward stroke and pneumatic upward stroke;
• Chrome-plated central bar;
• Steel basin with heavy-duty reinforcements;
• Steel pressing plate with heavy-duty reinforcements;
• Cage with beech wood staves, fixed with through-bolts.

Below are the individual features of the available versions.

Manual hydropneumatic press size 60:

• Internal cage diameter: approx. 60 cm
• Cage height: approx. 75 cm
• Pomace capacity: approx. 210 kg
• Wine press weight: 220 kg

Manual hydropneumatic press size 70:

• Internal cage diameter: approx. 70 cm
• Cage height: approx. 85 cm
• Pomace capacity: approx. 315 kg
• Wine press weight: 330 kg

Manual hydropneumatic press size 80:

• Internal cage diameter: approx. 80 cm
• Cage height: approx. 95 cm
• Pomace capacity: approx. 475 kg
• Wine press weight: 420 kg

Electric hydropneumatic press size 60:

• Internal cage diameter: approx. 60 cm
• Cage height: approx. 75 cm
• Pomace capacity: approx. 210 kg
• Wine press weight: 250 kg

Electric hydropneumatic press size 70:

• Internal cage diameter: approx. 70 cm
• Cage height: approx. 85 cm
• Pomace capacity: approx. 315 kg
• Wine press weight: 360 kg

Electric hydropneumatic press size 80:

• Internal cage diameter: approx. 80 cm
• Cage height: approx. 95 cm
• Pomace capacity: approx. 475 kg
• Wine press weight: 450 kg
