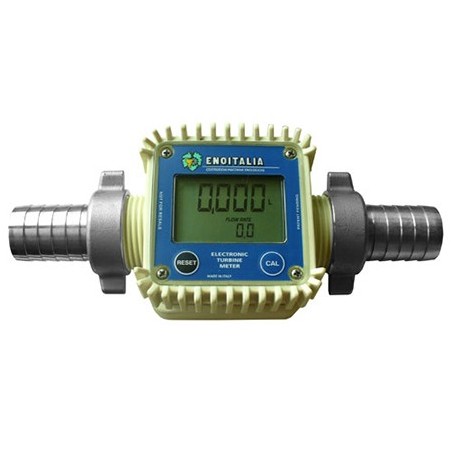

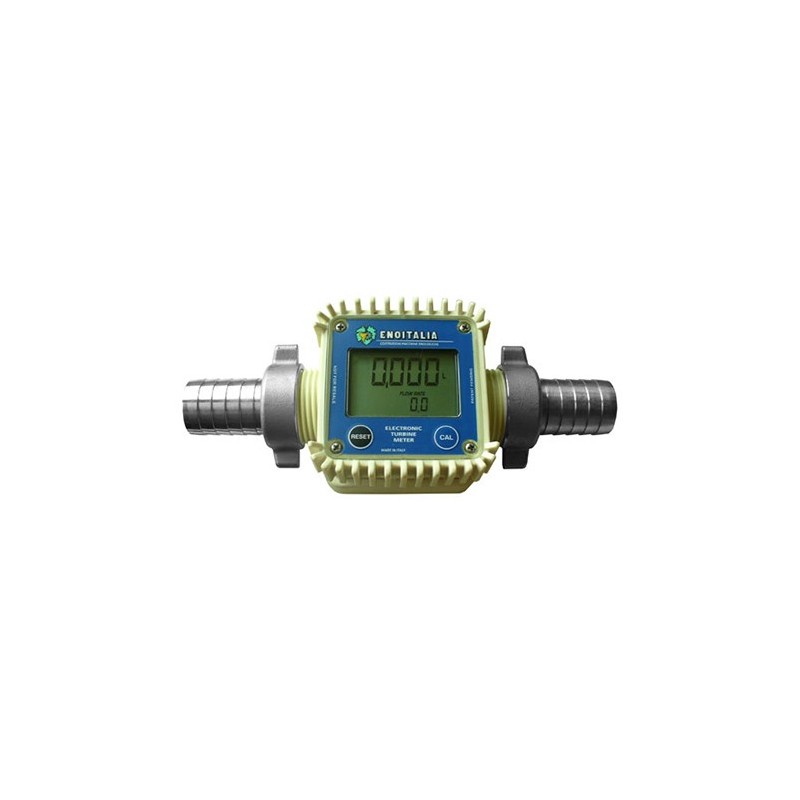

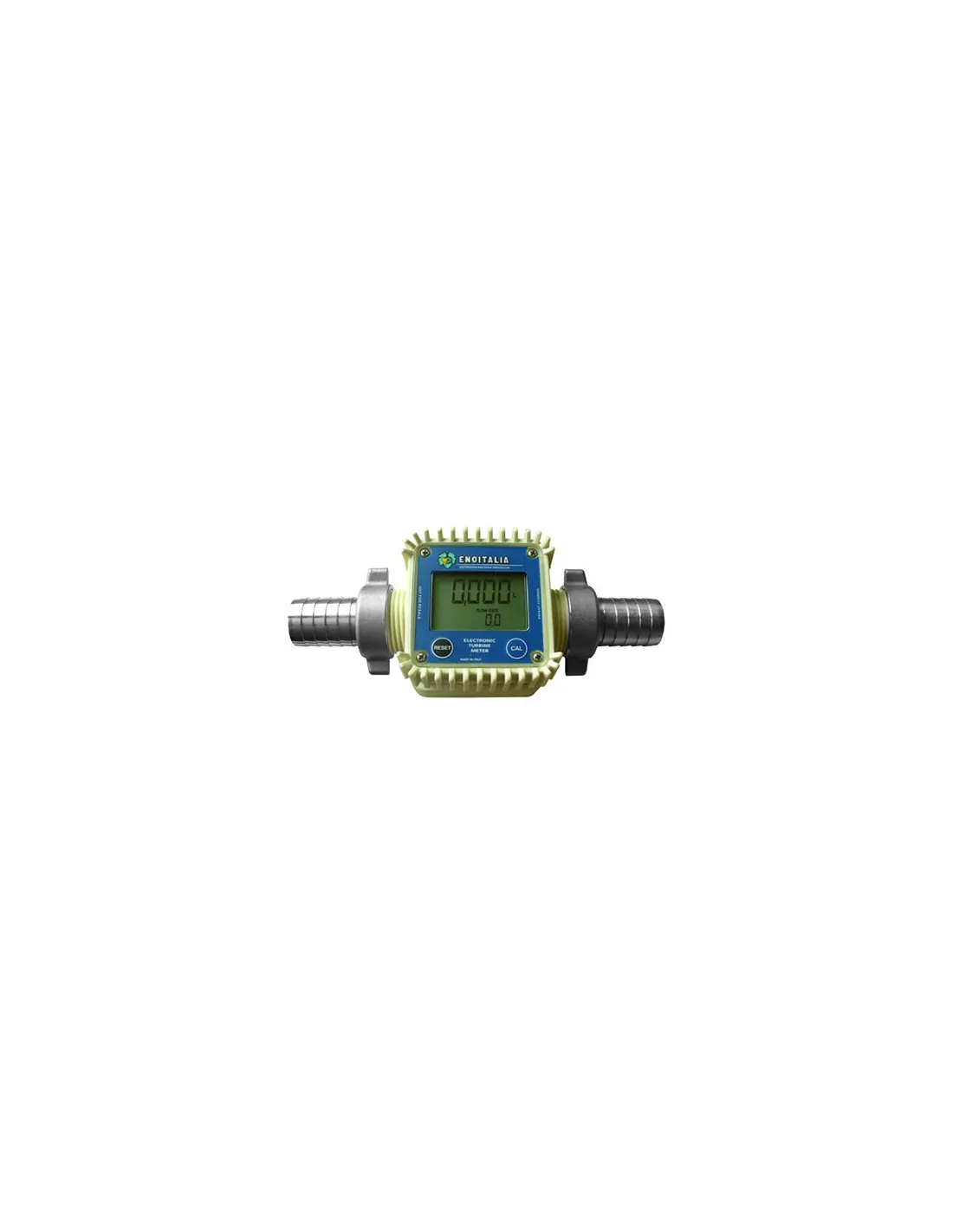

Digital Electromagnetic Flow Meter - 7,000 L/h

The 7,000 L/h digital electromagnetic flow meter is fitted with 1” GAS threaded inlet and outlet connections aligned on the same axis. Certified for food use with liquids such as wine, water, beer and fruit juices, it can be installed in different positions, either fixed in-line or mounted on a dispensing gun.

The square body and rotatable display allow the reading direction to be adjusted according to the installation position. The meter features partial reset, calibration and totalizer functions and is supplied with a 1” hose tail. It is suitable for both gravity filling and transfer-pump systems.

The calibration function allows the instrument to be adjusted for gravity filling or use with transfer pumps. Resettable and non-resettable totalizers are also provided, making the meter suitable for fiscal verification.

The instrument offers two operating modes. In Normal mode, it displays the partial and total delivered quantities. In Flow Rate mode, it displays the instantaneous flow rate and the partial delivered quantity.

The non-volatile memory retains stored dispensing data even in the event of complete power loss for extended periods.

Technical features

• Power supply: 1.5 V AAA batteries
• Operating modes: Normal and Flow Rate
• Display: rotatable
• Memory: non-volatile
• Connections: food-grade plastic, 1” GAS
• Calibration: available
• Flow range: 30 to 130 L/min
• Maximum flow rate: 7,000 L/h at 16 bar
• Resolution: 0.001 L
• Accuracy: ±1%
• Minimum pressure: 0.3 bar
• Maximum pressure: 16 bar
