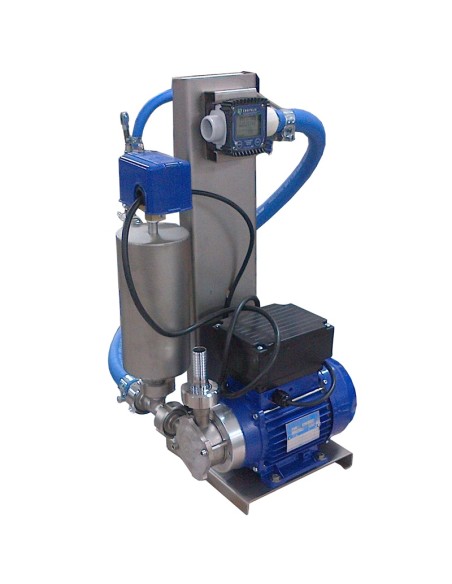

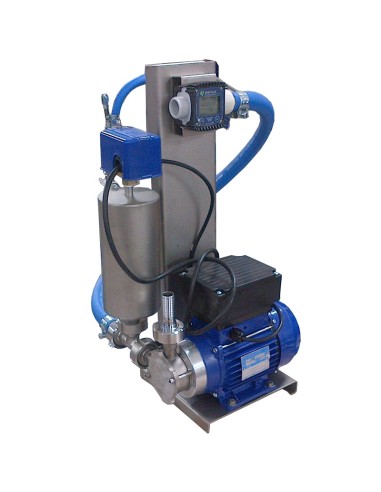

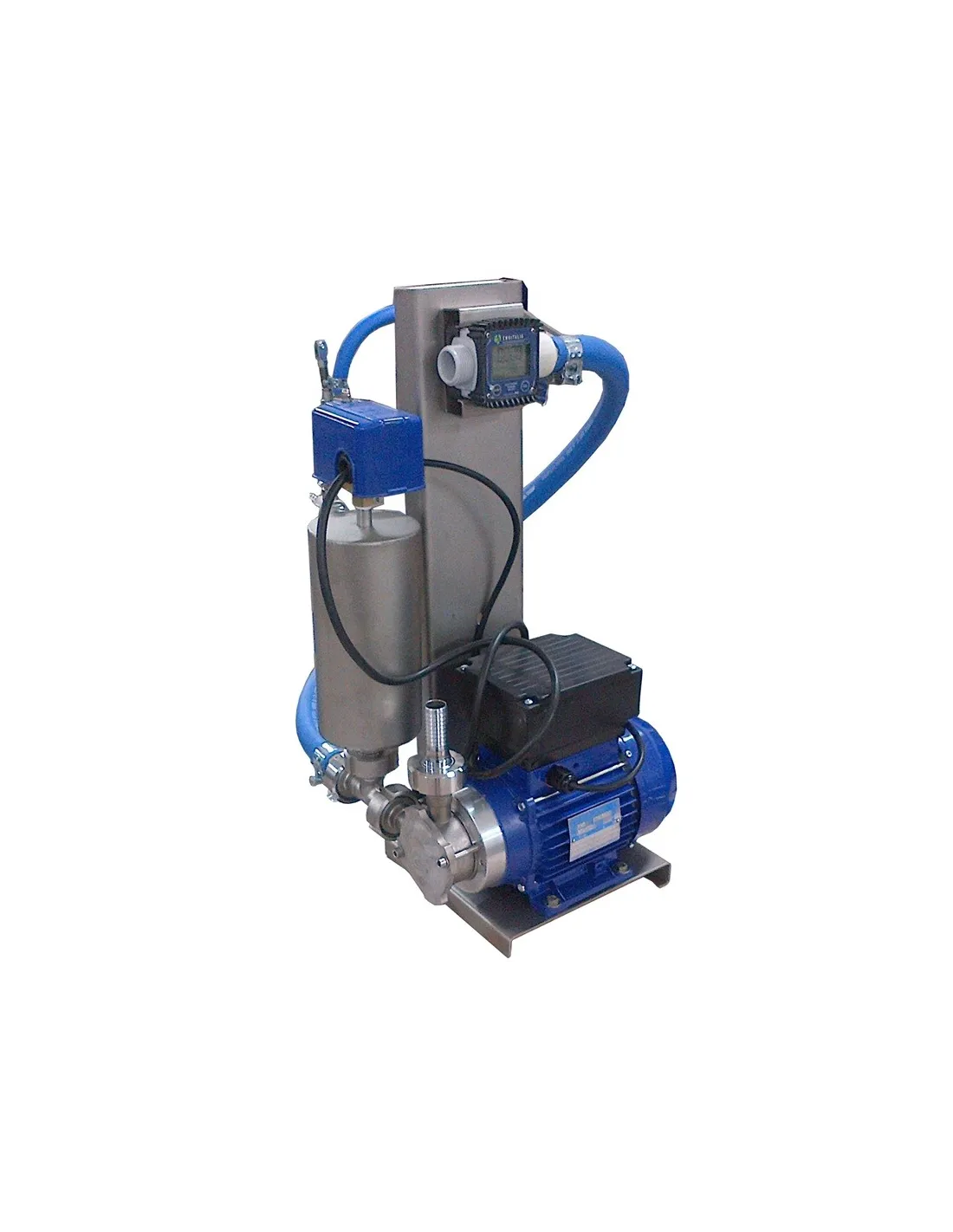

Bulk Wine Dispenser

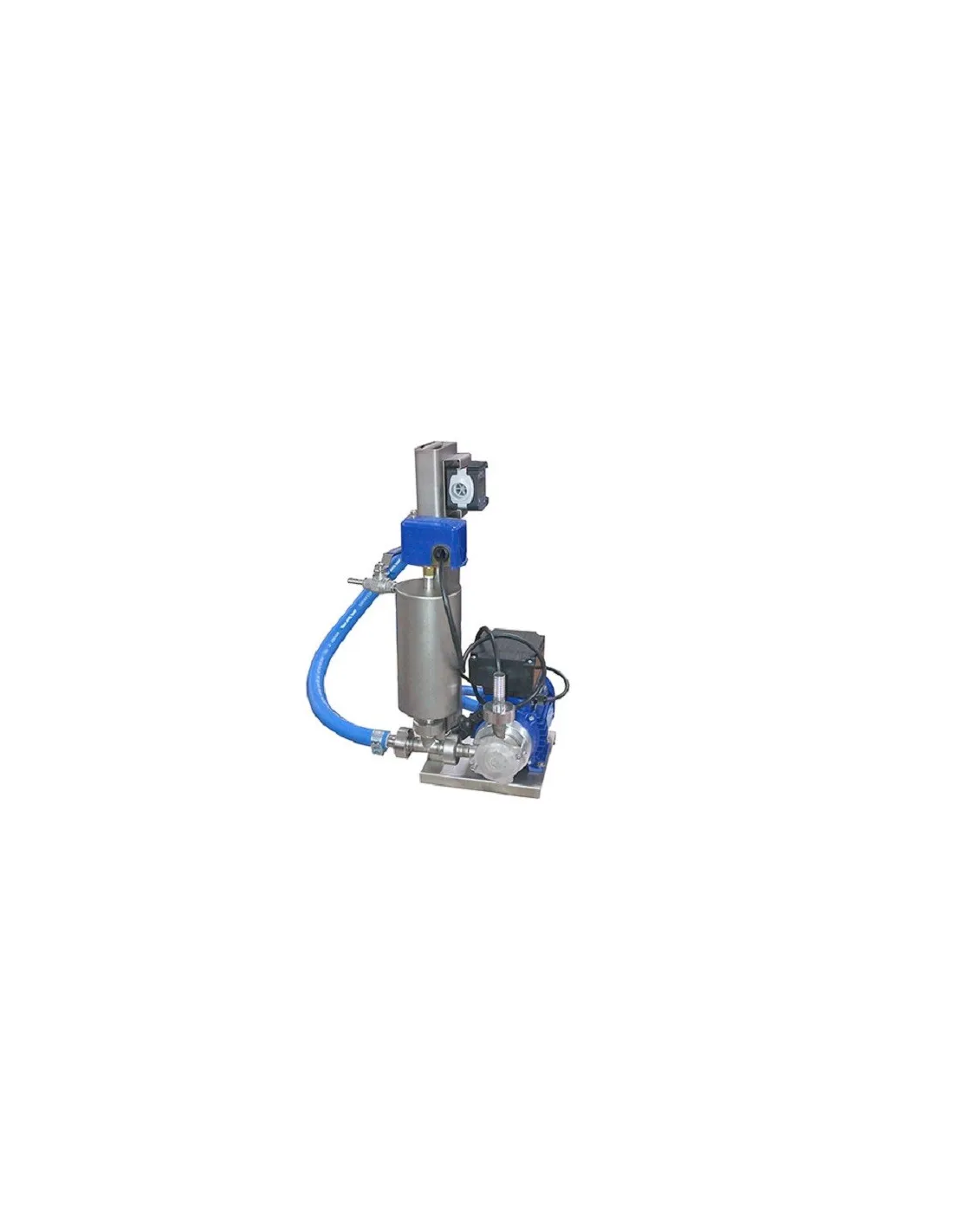

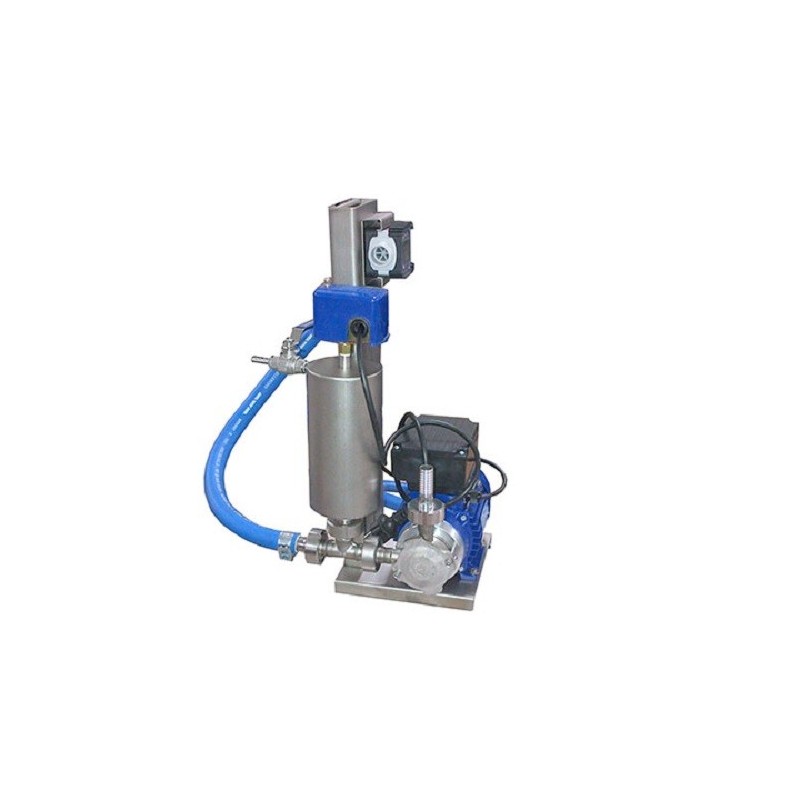

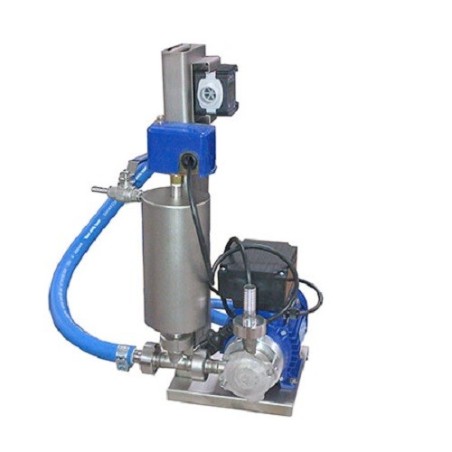

The bulk wine dispenser is designed for use in bulk wine distribution systems such as wine shops. Made entirely in Italy, the system includes a volumetric electric pump with rubber impeller, an expansion tank and an automatic pressure switch.

The dispenser can be connected directly to the outlet valve of the wine container. With constant pressure, it can reach distances of up to 20 metres and height differences of up to 10 metres. The system is equipped with safety valves for removing air from the circuit and reducing foam formation, while the pressure switch and expansion tank maintain the dispensing pressure.

The bulk wine dispensing system is suitable for filling containers from 5 litres upwards. An optional kit is available for filling containers from 1 litre.

Technical features and equipment

• Power: 0.36 kW
• Flow meter: digital turbine flow meter
• Pump: volumetric electric pump with rubber impeller
• Power supply: 220 V, 50 Hz, single-phase
• Hose: food-grade rubber hose
• Expansion tank: stainless steel with anti-foam valve
• Non-return valve: stainless steel
• Pressure control: automatic pressure switch
• Dispensing gun: stainless steel
• Air removal system: for removing air from the circuit
• Foam reduction system
• Inlet and outlet fittings: DIN 20 and 25
• Container size: from 5 litres upwards
• Capacity: 1,000 L/h
• Dimensions: 24 x 30 x 43 cm
• Weight: 20 kg

Optional equipment

• Stainless steel dispensing gun
• Flow meter for oil and viscous liquids
• Stainless steel trolley
• Bag-in-Box filling accessory
